Plot tensor product effects

Source: R/convenience-plots.R

Given a gam model this convenience function returns a ggplot2 object depicting 2d smooth terms specified in the model as heat/contour plots. If more than one 2d smooth term is present individual terms are faceted.

gg_tensor(x, ci = FALSE, ...)

Arguments

x

a fitted gam object as produced by gam().
ci

A logical value indicating whether confidence intervals should be calculated and returned. Defaults to TRUE.
...

Further arguments passed to plot.gam

See also

tidy_smooth2d

Examples

g <- mgcv::gam(Sepal.Length ~ te(Sepal.Width, Petal.Length), data=iris)

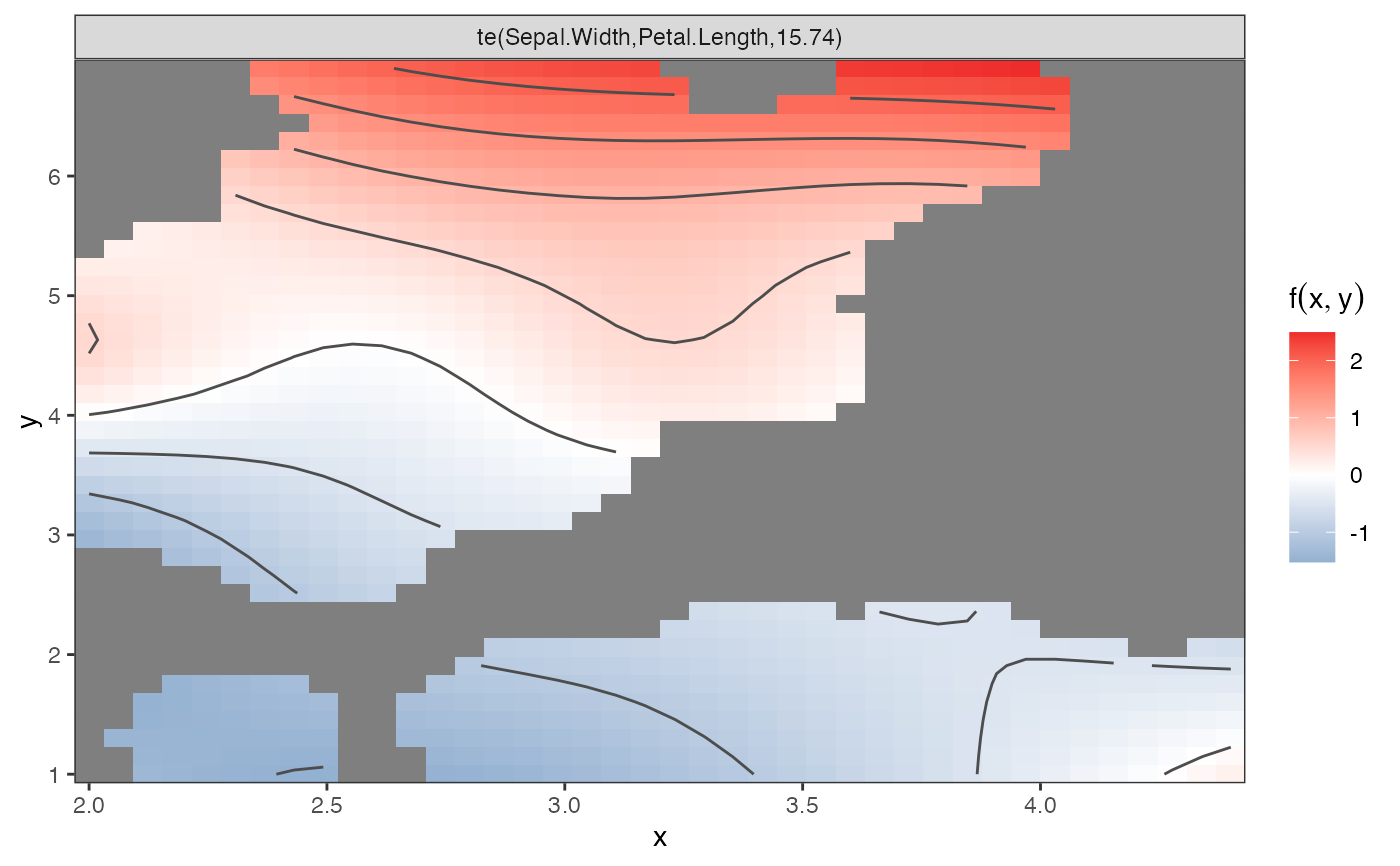

gg_tensor(g)

#> Warning: Removed 647 rows containing non-finite values (stat_contour).

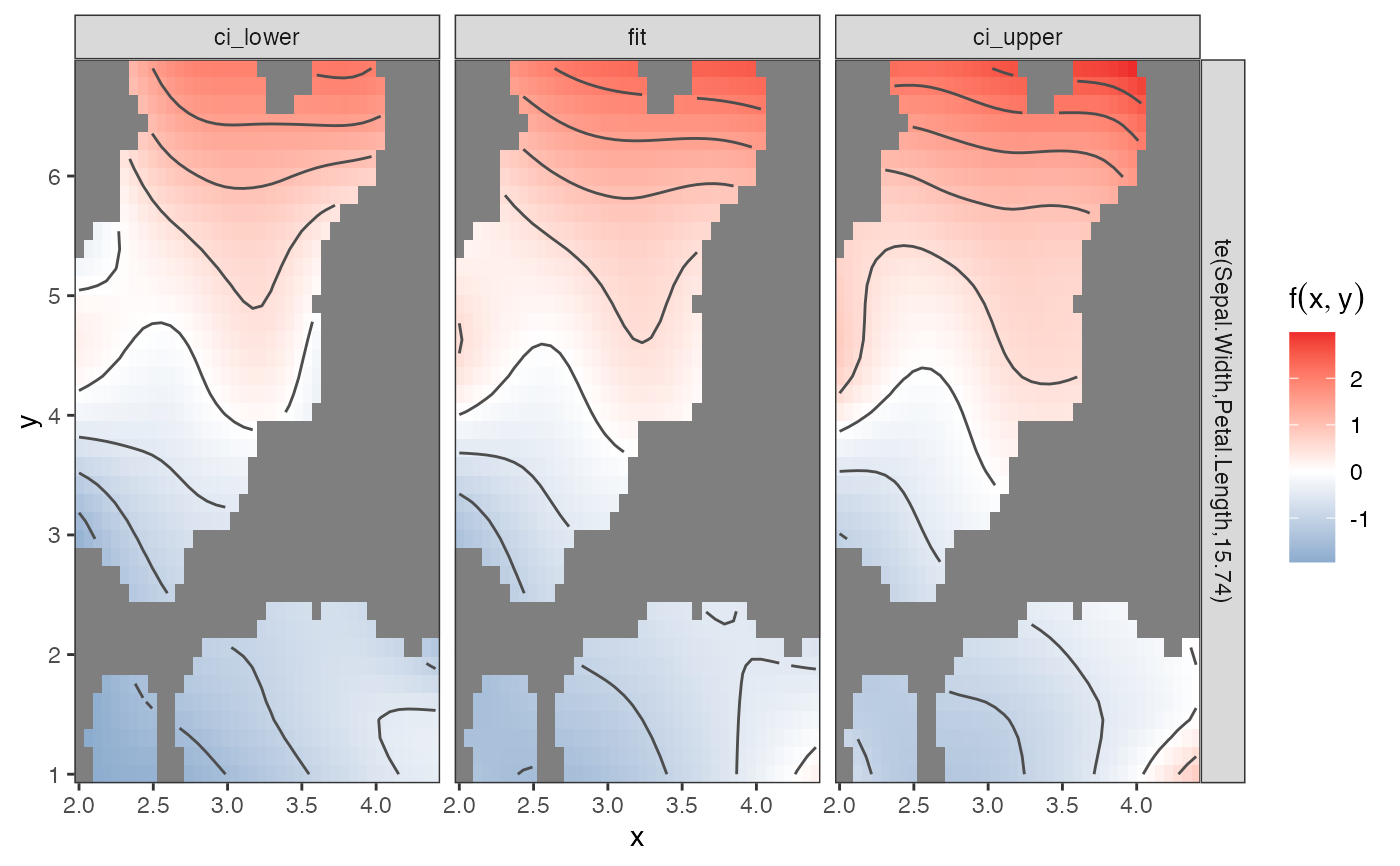

gg_tensor(g, ci=TRUE)

#> Warning: Removed 1941 rows containing non-finite values (stat_contour).

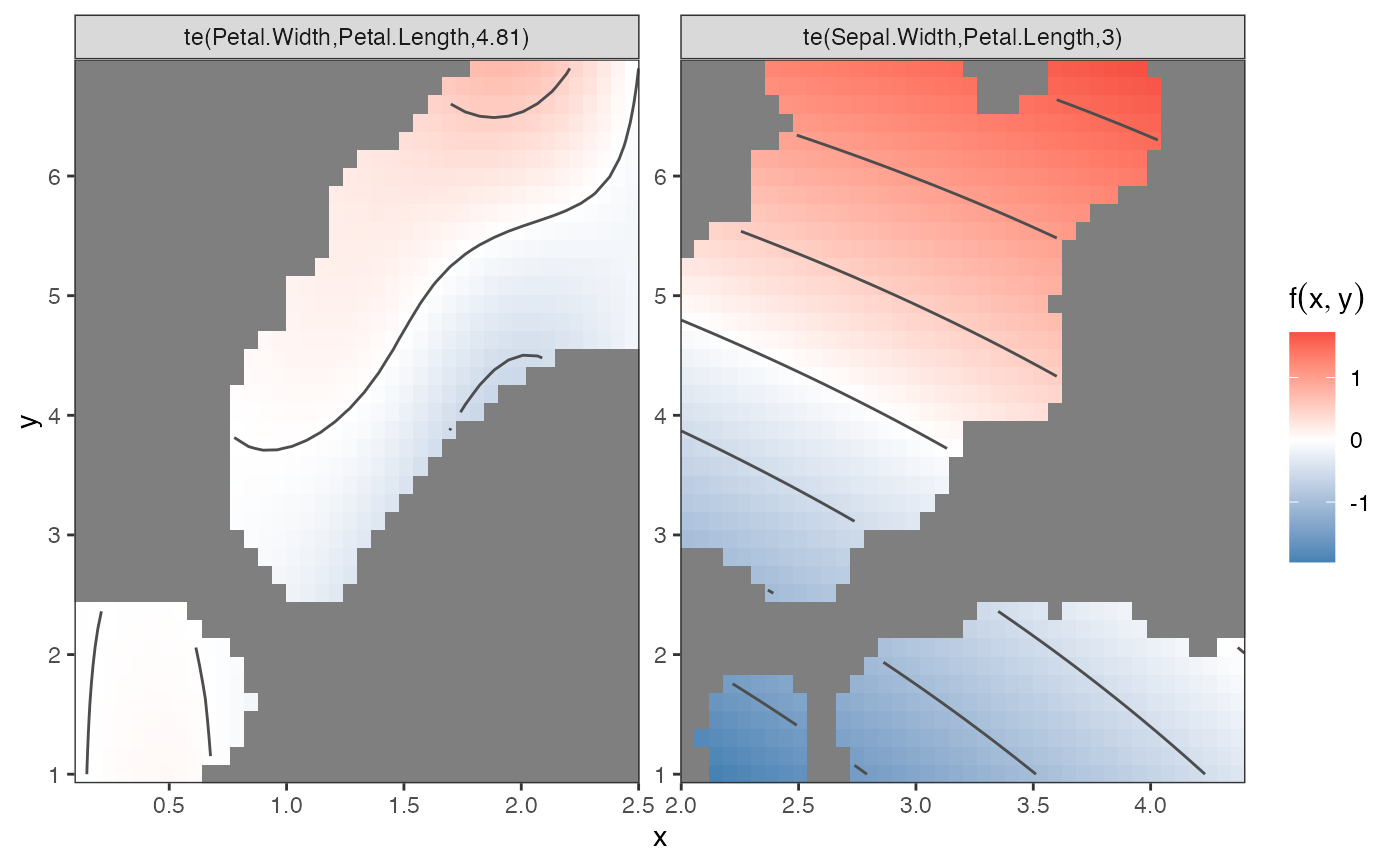

gg_tensor(update(g, .~. + te(Petal.Width, Petal.Length)))

#> Warning: Removed 1624 rows containing non-finite values (stat_contour).
#> Warning: Raster pixels are placed at uneven horizontal intervals and will be shifted. Consider using geom_tile() instead.
